Re: DOH! Stripped Sump Thread.
by kingfisher on Mon Dec 08, 2008 8:09 pm
sir doris could you give me a link to uk drills on ebay as i have put in the search box on ebay and nothings coming up , thanks
-
kingfisher - How Many Posts
- Posts: 327
- Joined: Thu Feb 14, 2008 7:37 pm
- Location: dudley , west midlands
- Model: 2.0i Sport 3dr
- Registration Year: 1994/L
- Vehicle Name: The money pit
- Region: Midlands
Re: DOH! Stripped Sump Thread.
by Sir-Doris on Mon Dec 08, 2008 8:37 pm
Il go one better. Drillbit and taps are from UK Drills on Ebay, Bolt and washer are from www.stagonset.co.uk I got a stainless steel bolt and washer, a bit more expensive at about £1.80, but a regular galvanised bolt and washer could be had in a hardware store for about 20P.
14mm Drill bit Ebay number: 250301673742
1st and 2nd Tap Ebay number: 260294168553
For the taps buy 2 and when you come to checkout tell them you want a 1st and 2nd.
And the 16x2.0 Stainless Steel bolt was from here: M16x2.0x25mm Bolt
And I bought a Stainless Steel washer as well: M16 Form A washer
14mm Drill bit Ebay number: 250301673742
1st and 2nd Tap Ebay number: 260294168553
For the taps buy 2 and when you come to checkout tell them you want a 1st and 2nd.
And the 16x2.0 Stainless Steel bolt was from here: M16x2.0x25mm Bolt
And I bought a Stainless Steel washer as well: M16 Form A washer
-
Sir-Doris - Sir Dong
- Posts: 7391
- Joined: Wed Oct 31, 2007 1:16 am
- Location: Powys, Wales
- Model: 2.2i 5dr
- Registration Year: 1995/N
- Vehicle Name: The Old Girl
- Modifications: Blanked EGR Valve
265/75/16 Marix Lions
Pro-Comp Steering Stabiliser
Rough Country Shocks
+ 5" Suspension Lift
UCA Ball Joint Spacers + Low Profile Bump Stops
Stainless Extended Braided Brake Lines
1.5" Body Lift
CB
Lowered Front Diff Hangers
Grooved and Dimpled Front Brake Discs
Front and Rear Recovery Loops
Petrol Cap on a String
Secondary Air
Injection System Removed
Removed Front ARB
Soon to have 5.13:1 Diff's
Got the Diff's just need to fit em - Region: Mid Wales
Re: DOH! Stripped Sump Thread.
by Drift on Mon Dec 08, 2008 9:28 pm
Handy info Phil
Ste
FOG Administrator
Frontera Technical Support
Often Imitated Never Bettered
http://www.fronteraowners.co.uk
Its here, the FOG Annual Meet 2014 viewforum.php?f=123
FOG Administrator
Frontera Technical Support
Often Imitated Never Bettered
http://www.fronteraowners.co.uk
Its here, the FOG Annual Meet 2014 viewforum.php?f=123
-
Drift - The Man-ual
- Posts: 43955
- Joined: Tue Dec 06, 2005 11:20 pm
- Location: Driftshire
- Model: 2.8 TDI 5dr
- Registration Year: 1995/N
- Vehicle Name: Daddy's Car or Triggers Broom
- Modifications: 2.8 TDI LWB
Tinkered to it's practical limits but understated, though shockingly cool (do you know her?).
She is nicccccceeee ;-) - Region: North West
- Skype Username: driftwood10
Re: DOH! Stripped Sump Thread.
by Sir-Doris on Mon Dec 08, 2008 9:50 pm
It is. Fingers crossed it will all fit together and work as advertised
As mentioned in a previous post, check to see if you have a steel or alloy sump as the steel ones have a bit less material to work with then the alloy ones.
As mentioned in a previous post, check to see if you have a steel or alloy sump as the steel ones have a bit less material to work with then the alloy ones.
-
Sir-Doris - Sir Dong
- Posts: 7391
- Joined: Wed Oct 31, 2007 1:16 am
- Location: Powys, Wales
- Model: 2.2i 5dr
- Registration Year: 1995/N
- Vehicle Name: The Old Girl
- Modifications: Blanked EGR Valve
265/75/16 Marix Lions
Pro-Comp Steering Stabiliser
Rough Country Shocks
+ 5" Suspension Lift
UCA Ball Joint Spacers + Low Profile Bump Stops
Stainless Extended Braided Brake Lines
1.5" Body Lift
CB
Lowered Front Diff Hangers
Grooved and Dimpled Front Brake Discs
Front and Rear Recovery Loops
Petrol Cap on a String
Secondary Air
Injection System Removed
Removed Front ARB
Soon to have 5.13:1 Diff's
Got the Diff's just need to fit em - Region: Mid Wales
Re: DOH! Stripped Sump Thread.
by Drift on Mon Dec 08, 2008 9:57 pm

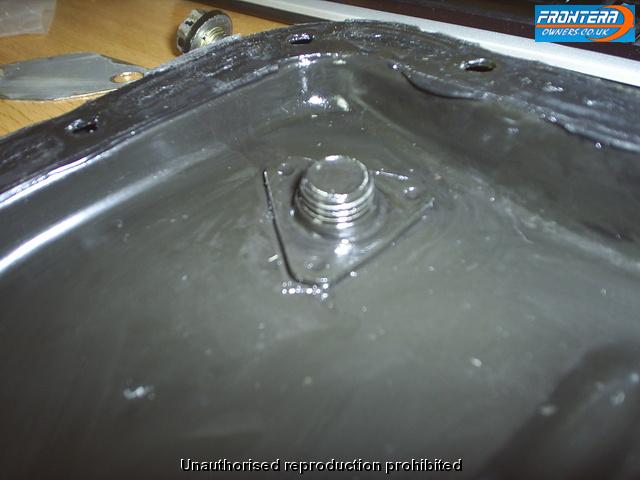

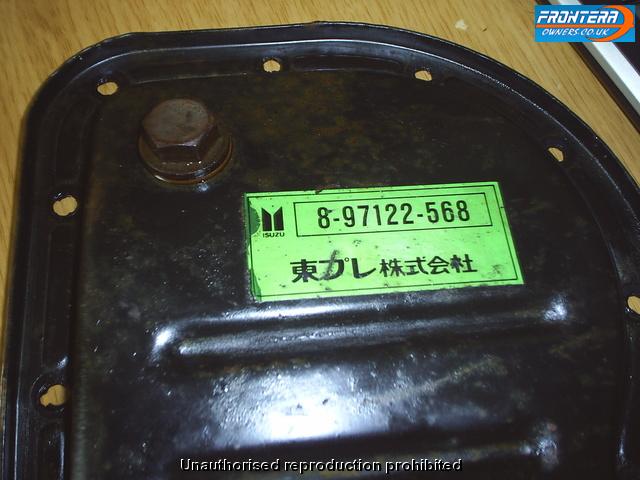

For those with the 2.8 this is what your dealing with
inside view
inside view
Ste
FOG Administrator
Frontera Technical Support
Often Imitated Never Bettered
http://www.fronteraowners.co.uk
Its here, the FOG Annual Meet 2014 viewforum.php?f=123
FOG Administrator
Frontera Technical Support
Often Imitated Never Bettered
http://www.fronteraowners.co.uk
Its here, the FOG Annual Meet 2014 viewforum.php?f=123
-
Drift - The Man-ual
- Posts: 43955
- Joined: Tue Dec 06, 2005 11:20 pm
- Location: Driftshire
- Model: 2.8 TDI 5dr
- Registration Year: 1995/N
- Vehicle Name: Daddy's Car or Triggers Broom
- Modifications: 2.8 TDI LWB
Tinkered to it's practical limits but understated, though shockingly cool (do you know her?).
She is nicccccceeee ;-) - Region: North West
- Skype Username: driftwood10
Re: DOH! Stripped Sump Thread.
by Sir-Doris on Mon Dec 08, 2008 10:18 pm
As you can all see from Ste's pics the pressed steel sump just has a metal collar welded to the sump and it doesnt have much material to work with.
Goo pic Ste.
Goo pic Ste.
-
Sir-Doris - Sir Dong
- Posts: 7391
- Joined: Wed Oct 31, 2007 1:16 am
- Location: Powys, Wales
- Model: 2.2i 5dr
- Registration Year: 1995/N
- Vehicle Name: The Old Girl
- Modifications: Blanked EGR Valve
265/75/16 Marix Lions
Pro-Comp Steering Stabiliser
Rough Country Shocks
+ 5" Suspension Lift
UCA Ball Joint Spacers + Low Profile Bump Stops
Stainless Extended Braided Brake Lines
1.5" Body Lift
CB
Lowered Front Diff Hangers
Grooved and Dimpled Front Brake Discs
Front and Rear Recovery Loops
Petrol Cap on a String
Secondary Air
Injection System Removed
Removed Front ARB
Soon to have 5.13:1 Diff's
Got the Diff's just need to fit em - Region: Mid Wales
Re: DOH! Stripped Sump Thread.
by kingfisher on Tue Dec 09, 2008 1:17 am
mines not lke that , so i must have the alloy sump . thanks for the info sir doris. i will order them now thanks mick
-
